Essential Track Planning Tips for Realistic Model Railroad Operations
Effective track planning separates functional layouts from frustrating ones that never achieve their potential. Many beginners focus solely on fitting maximum trackage into available space, overlooking operational flow and realistic proportions that enable satisfying train movements. This guide explores critical planning principles including minimum curve radius, turnout placement, and industry siding design that create layouts supporting prototypical operations rather than merely watching trains circle endlessly. Proper planning during the design phase prevents costly rebuilding later.
Curve Radius and Clearance Standards
Minimum curve radius directly impacts which equipment operates reliably on your layout. Tighter curves cause derailments with longer locomotives and rolling stock, while excessively broad curves consume precious space. HO scale layouts should target 24-inch minimum radius for mainline curves, with 18-inch acceptable for industrial spurs and yard tracks where shorter equipment operates.
- Prototype railroads use curves measured in degrees with typical mainlines between 2-6 degrees
- Model railroad curves are much sharper than prototype requiring selective equipment choices
- Test critical equipment on curved track sections before finalizing permanent installation
- Easements transitioning from straight to curved track reduce derailment risk significantly
Turnout Types and Applications
Turnout selection impacts both appearance and operational characteristics. Number 4 and 6 turnouts suit yard and industrial applications where trains move slowly, while number 6 and 8 provide smoother diverging routes for mainline applications.
| Turnout Number | Diverging Angle | Best Application |
|---|---|---|
| Number 4 | 14 degrees | Tight industrial spurs |
| Number 6 | 9.5 degrees | Yards and secondary tracks |
| Number 8 | 7 degrees | Mainline crossovers |
| Number 10+ | 5 degrees or less | High-speed mainlines |
"Experienced layout designers prioritize operational flow over cramming maximum track into spaces, creating satisfying switching operations that maintain long-term interest"

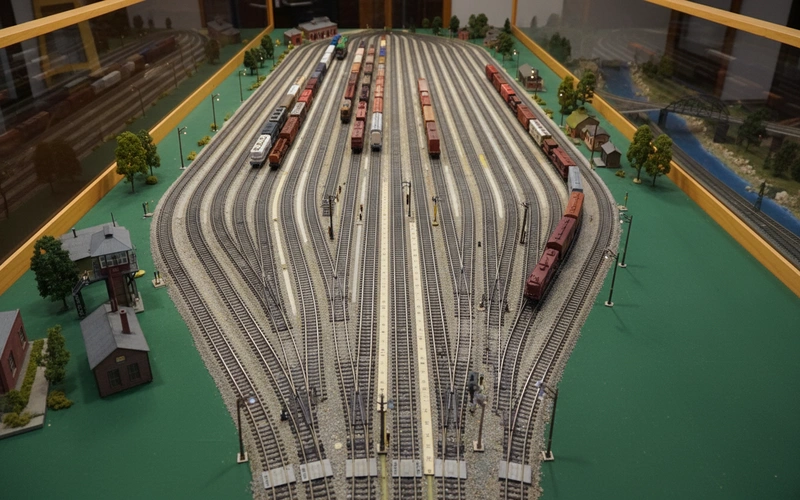

Industry and Yard Design
Industries and classification yards provide operational purpose beyond watching trains run circles. Design industry sidings long enough to accommodate typical car spots plus locomotive clearance. Place industries requiring regular switching near yard facilities reducing excessive locomotive movements. Yard tracks should accommodate your longest anticipated trains with room for classification work. Consider vertical clearances for overhead structures and ensure adequate spacing between parallel tracks preventing collisions during switching moves. Thoughtful track planning enables operations mimicking real railroad work flows.
